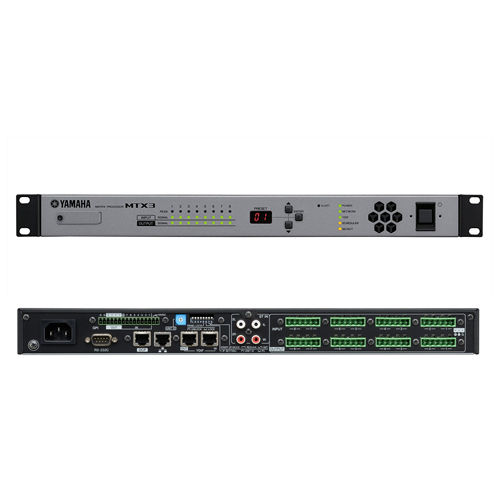

Procesador Matriz de audio digital Yamaha MTX 3
Matriz Mezcladora de 26 x 8 / Procesador de Señal
- 8ch de entradas mic/línea y 8ch analógicos de salida
- 16ch digitales E/S YDIF
- Ranura SD Card para reproducción
| MTX3 | ||
|---|---|---|
| Mixing capability | Mixing channels | Mixing Channel : 8 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix/ Output Busses : 8 Mono |
| Input channel functions | Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (only available in ch 1-4)/ Stereo CH: 3-band PEQ, Comp, Auto Gain Control | |
| Output channel functions | Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter | |
| I/O | Phantom power | +48V |
| Internal processing | Priority Ducking, Ambient Noise Compensator | |
| Sampling frequency rate | Internal | 48kHz/44.1kHz |
| Signal delay | Less than 2.5ms (AD-DA @48kHz) | |
| Total harmonic distortion | Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB) | |
| Frequency response | 20Hz to 20kHz, +0.5dB, -1.5dB | |
| Dynamic range | 107dB (Gain:-6dB) | |
| Hum & noise level | Equivalent input noise | -60dBu (Gain：+66dB), -83dBu (Gain：-6dB) |
| Crosstalk | -100dB | |
| Heat dissipation | 43kcal/h max | |
| Power requirements | AC100V-240V 50Hz/60Hz | |
| Power consumption | 50W | |
| Dimensions | W | 480mm (18.9") |
| H | 44mm (1.7") | |
| D | 362mm (14.3") | |
| Net weight | 4.8kg (10.6lbs) | |
| Others | Memory bank : PRESET 50 | |
- * Total harmonic distortion is measured with a 18dB/Oct fi lter @80kHz.
- * Hum & noise level is measured with a 6dB/oct fi lter @12.7kHz; equivalent to 20kHz fi lter with infi nite dB/Oct attenuation.
