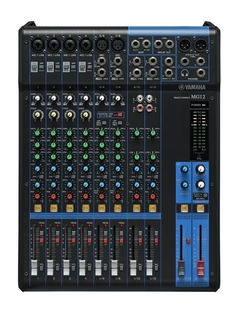

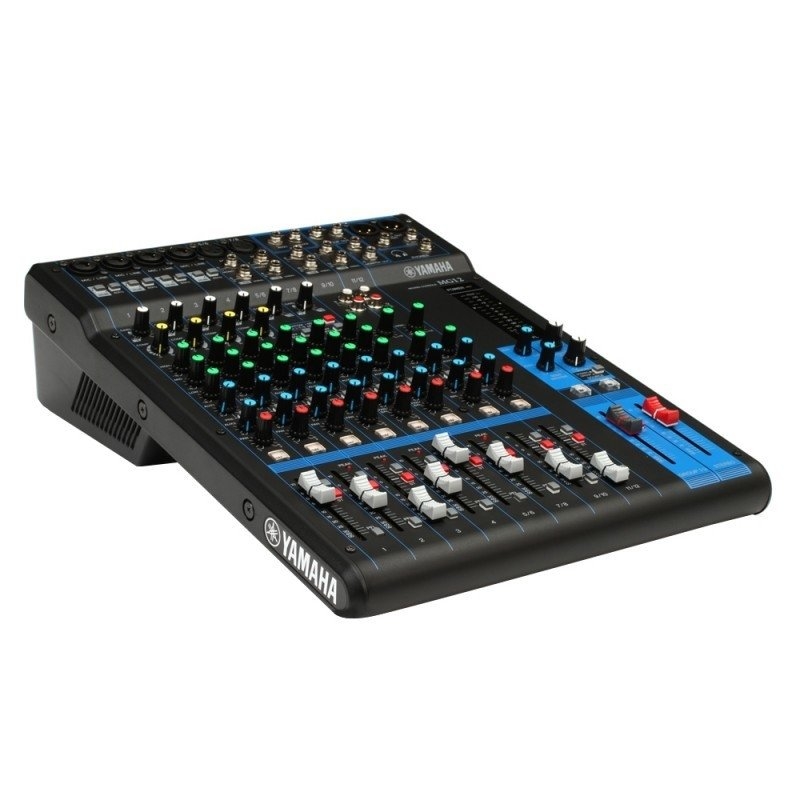

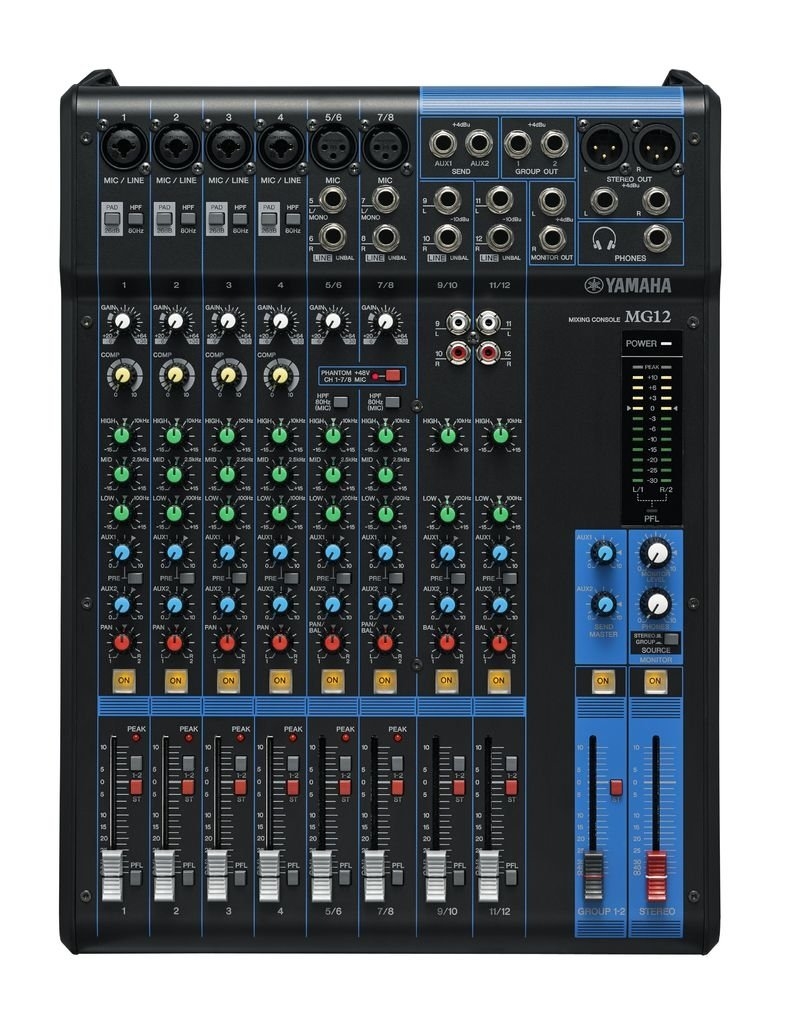

Consola Mixer Yamaha MG12 , nueva en caja , garantía oficial
- Consola Mixer Yamaha MG12 , nueva en caja , garantía oficial
- Mesa de mezclas de 12 canales
- Hasta un máximo de 6 entradas de micro/12 de línea (4 mono + 4 estéreo)
- 2 buses de grupo + 1 bus estéreo
- 2 envíos AUX (incluyendo envío para efectos)
- Preamplificadores de micro “D-PRE” con circuito Darlington invertido
- Compresores de mando único
- Interruptor de atenuación (PAD) en las entradas mono
- Alimentación phantom +48 V

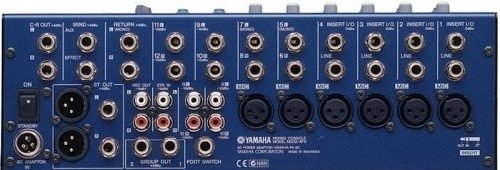

- Salidas XLR balanceadas
- Fuente de alimentación interna universal para poder utilizar la mesa en cualquier parte del mundo
- Kit para montaje en rack (RK-MG12) opcional
- Chasis metálico
- Dimensiones (ancho x alto x profundo): 308 mm x 118 mm x 422 mm
- Peso neto: 4,0 kg
|
I/O |
Phantom power |
+48 V |
|
Input Channels |
Mono[MIC/LINE] |
4 |
|
Mono/Stereo[MIC/LINE] |
2 |
|
|
Stereo[LINE] |
2 |
|
|
Output Channels |
STEREO OUT |
2 |
|
MONITOR OUT |
1 |
|
|
PHONES |
1 |
|
|
AUX SEND |
2 |
|
|
GROUP OUT |
2 |
|
|
Bus |
Stereo: 1, GROUP: 2, AUX: 2 |
|
|
Input Channel Function |
PAD |
26 dB (Mono) |
|
HPF |
80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
|
|
COMP |
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
|
|
EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
|
|
EQ MID |
Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
|
|
EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
|
|
PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
|
|
Level Meter |
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
|
General specifications
|
Total harmonic distortion |
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
|
|
Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
|
|
Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
|
Residual output noise |
-102 dBu (STEREO OUT, STEREO master fader: Min) |
|
|
Crosstalk |
-78 dB |
|
|
Power requirements |
AC 100 – 240 V, 50 / 60 Hz |
|
|
Power consumption |
22 W |
|
|
Dimensions |
W |
308 mm (9.6") |
|
H |
118 mm (2.8") |
|
|
D |
422 mm (11.6") |
|
|
Net weight |
4.0 kg (8.8 lbs.) |
|
|
Accessories |
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12 |
|
|
Others |
Operating Temperature: 0 to +40˚C |
|
